Y210/WS – WIRED ANEMOMETER WITH ALARMS FOR CONSTRUCTION SITES AND INDUSTRY

The Navis Y210/WS is a wind speed monitor with 2x alarm relay outputs for construction sites, designed to meet the needs of, tower cranes, bridge cranes, scaffolding and cherry picker operations during construction or any other application where wind speed monitoring is required.



Description

Overview:

The Navis Y210/WS is a wind speed monitor with 2x alarm relay outputs for construction sites, designed to meet the needs of, tower cranes, bridge cranes, scaffolding and cherry picker operations during construction or any other application where wind speed monitoring is required.

Stock Unit Model Number:

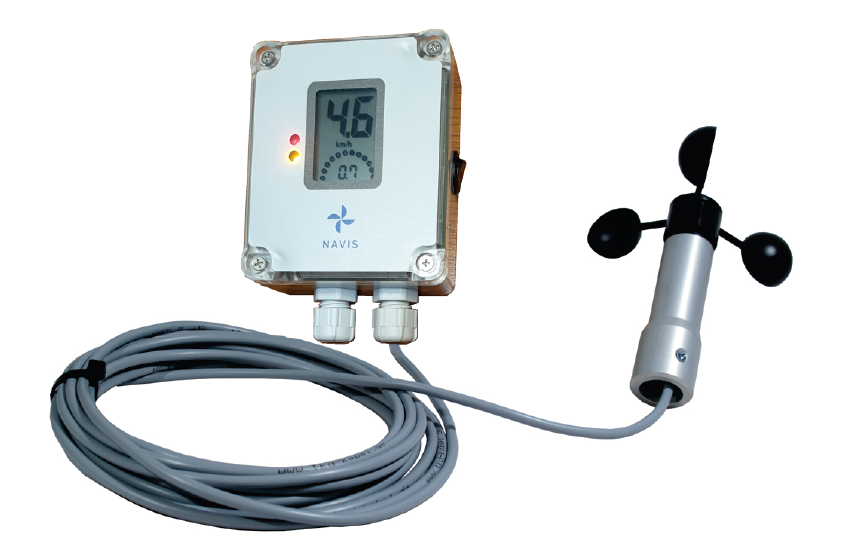

  • Y210/WS

Display unit (12~24VDC supply) with 2x relay outputs, 2x audible and visual alarms and 10m wired wind speed sensor.

Please send us an enquiry should you need a different configuration in the Y210 series.

Features:

  • Wind speed measurement in m/s, km/h, knots or mph
  • Programmable wind speed alarm set points with audible and visual warning as well as relay outputs
  • Current, average and maximum wind speed
  • Bar graph for wind speed
  • Temperature
  • Easy mounting with 20mm pole mount.

Applications:

  • Crane applications:
    • Tower Cranes
    • Bridge Cranes
  • Lift applications
  • All applications where wind speed warning and alarms are needed
