W110L/WSD – WIRELESS ANEMOMETER (4-20mA Output)

The Navis W110L/WDS is a wind speed and direction transmitter, designed to meet the needs of  third party integration where wind speed and direction must be integrated with PLC’ and other indicators or monitoring systems.



Description

Overview:

The Navis W110L/WDS is a wind speed and direction transmitter, designed to meet the needs of  third party integration where wind speed and direction must be integrated with PLC’ and other indicators or monitoring systems.

Stock Unit Model Number:

  • W110L/WDS

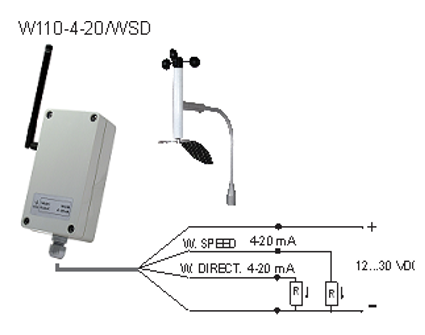

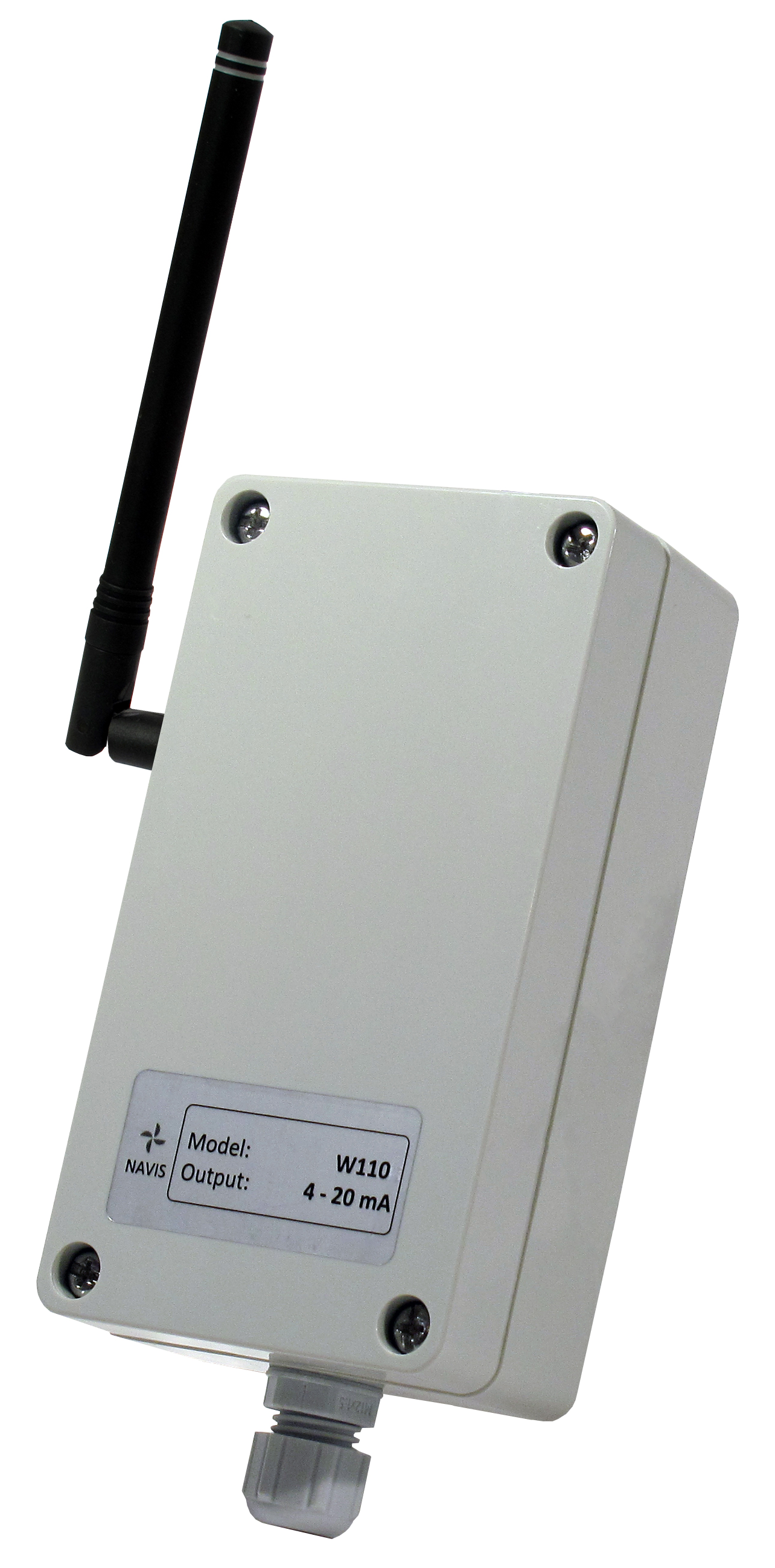

Receiver unit (12~24VDC supply) with 2x 4~20mA outputs for wind speed and direction, WSD (wind speed and direction) sensor.

Please send us an enquiry should you need a different configuration in the W110 series.

Features:

  • Easy mounting due to wireless sensor and receiver with 4~20mA outputs
  • Long range: up to 400m
  • User replaceable sensor battery (Up to 3 year battery life)
  • Instant wind speed data. Data transmission every 2 seconds
  • Durable and shockproof anemometer cups

Applications:

  • Third party integration
