Description

Overview:

The WTF-B100 Anemometer offers proven and effective monitoring for crane applications where wind speed monitoring is critically
important. The system includes WTF-B100 display, WFS-1 wind speed sensor and 10m cable.

Stock Unit Model Number:

• WTF-B100/24

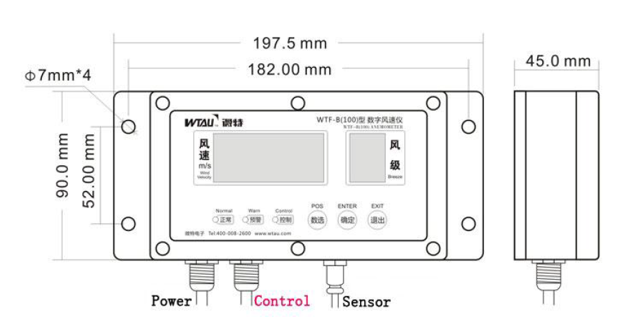

Display unit (24VDC supply) with 1x relay output, 2x visual alarms, anemometer and 10m cable.

Please send us an enquiry should you need a different configuration in the WTF-B100 series.

Features:

• Wind speed measurement in m/s, km/h
• Programmable wind speed alarm set points with visual warning as well as 1x relay output

Applications:

• Crane applications:
  • Mobile Cranes
  • Tower Cranes
  • Bridge Cranes
  • Telescopic cranes
  • Port cranes
  • Rail cranes
  • Lattice cranes
  • Dock cranes
• Lift applications
• All applications where wind speed warning and alarms are needed
