MFL3200 Electromagnetic Flow meter

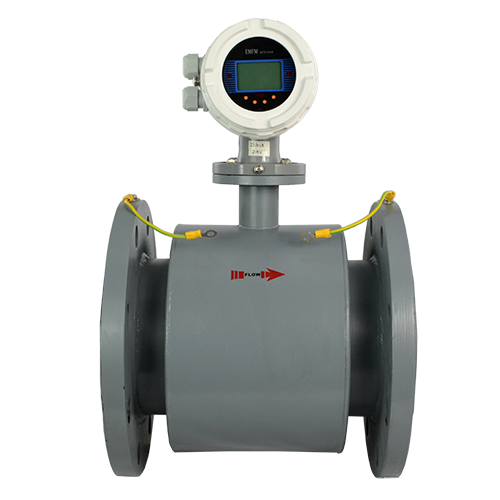

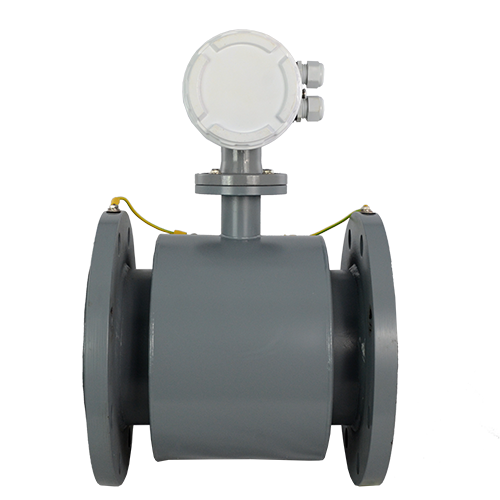

MFL3200 Electromagnetic Flow Meter is flange type electromagnetic flow meter



Description

Overview:

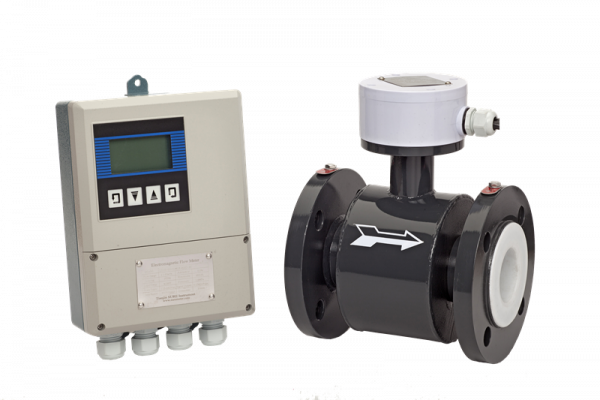

MFL3200 Electromagnetic Flow Meter is flange type electromagnetic flow meter, it can be used as compact or separate model with converter, designed to measure volume flow rate of conductive liquids more than 5us/cm, and also for volume flow rate measurement of strong acid or alkali or other strong corrosive liquids and slurry, pulp, paper pulp etc (fluids with liquid-solid suspension).

Widely used in petroleum, chemical, metallurgical, textile, paper making, food etc industries, water conservancy construction, river dredging areas.

Stock Unit Model Number:

  • As per customer application requirement

Please send us an enquiry should you need a different configuration in the MFL3200 series.

Features:

  • Measurement not affected by fluid density, viscosity, temperature, pressure and conductivity changes.
  • Without choked flow parts in measuring pipe, without pressure loss, short straight pipe requirement.
  • Multiple options on electrodes and inner linings for various applications
  • Completely digital processor for high accuracy and stability, strong anti-interference ability, wide range
  • Super lower EMI switching power, good anti-EMI ability.
  • 16-bit embedded micro controller processor: faster operation, high accuracy, programmable low frequency square wave excitation to improve the stability, lower consumption.
  • SMD components and SMT technology to guarantee circuit in high reliability
  • High resolution LCD indicator, easy and convenient operation.
  • With self-checking function.
  • Support RS485, RS232, Hart, Modbus protocol output, optional
  • Can record flow totalise per hour, flow totalise per minute, recording optional
  • Can display forward, reverse and differential flow totalisation; Built-in power off clock, stores last 16x times power off events, optional
