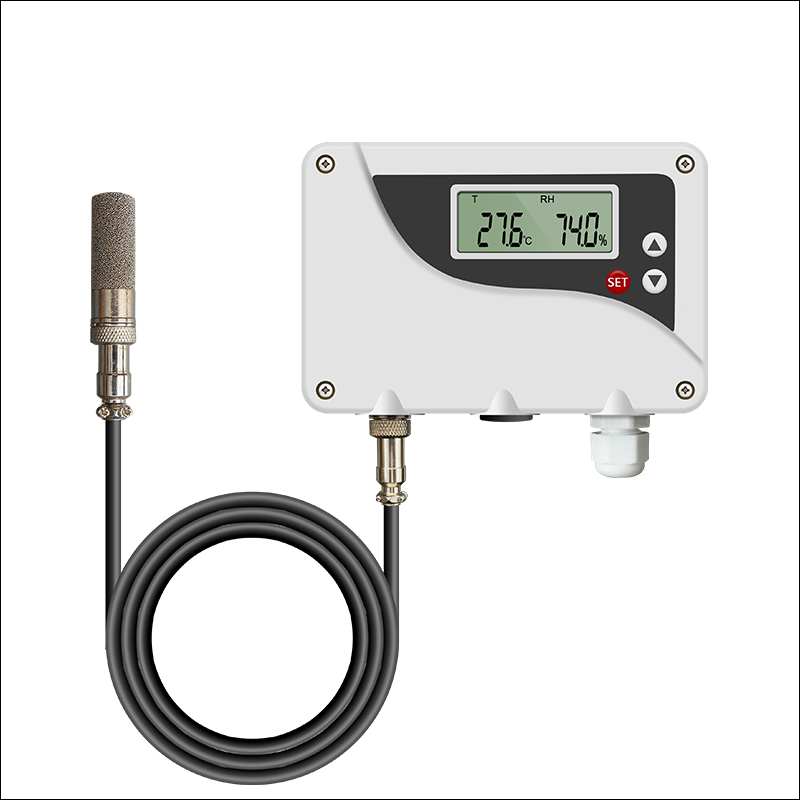

MTH800 Smart Digital Wall Type T&H Transmitter

The MTH800 is a high quality wall type temperature and humidity transmitter wity remote sensor, adopting Switz manufactured advanced sensor chip, designed for temperature and humidity measurement in building automation, libraries, warehouses, Medical Industry, HAVC Industry, Greenhouse etc including high temperature and humidity environments.

R10 200.00ea excl VAT



Description

Overview:

The MTH800 is a high quality wall type temperature and humidity transmitter with remote sensor, adopting Switz manufactured advanced sensor chip, designed for temperature and humidity measurement in building automation, libraries, warehouses, Medical Industry, HAVC Industry, Greenhouse etc including high temperature and humidity environments.

Stock Unit Model Number:

  • MTH800-DEAH2

MTH800, wall type temperature and humidity transmitter with indicator and remote probe type, 0.3%RH, 0.3C, -20 to 120deg, high temperature, 4-20 mA output

  • MTH800-DEKH2

MTH800, wall type temperature and humidity transmitter with indicator and remote probe type, 0.3%RH, 0.3C, -20-120deg, high temperature, Ethernet+2 relay output

Please send us an enquiry should you need a different configuration in the MTH800 series.

Features:

  • High Accuracy, High Stability, Anti-Interference PCB
  • SMT Technology, with indicator
  • Range: T: -20 to 120°C; H: 0-100%
  • Output: 4-20mA, optional Ethernet
  • With 2 relays outputs, optional
  • Temperature range, offset function can be set by keys
  • Probe: dust-proof, high-temperature (120°C)
  • Probe with external lead cable max.10m (standard 2m)
  • Accuracy: T:±3°C, H:±3% ;
  • Protection: Electrical housing: IP65; Probe: IP54
  • Wide power supply: 15-36VDC (4-20mA only)
