MPR800 6 Channel Colour Paperless Recorder (Size: 96×96)

R14,720.00

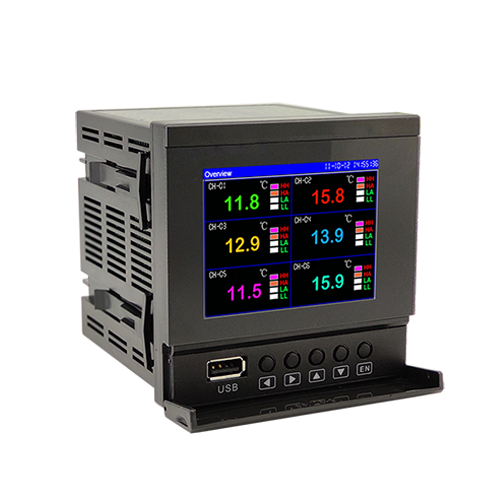

MPR800 is a universal colour paperless recorder with max 8 channels (6 standard), high accuracy processor for easy operation in universal applications. Display, measure, record and analyse or export processes parameters such as temperature, humidity, pressure, flow, vibration etc in various industry applications.

Description

Overview:

MPR800 is a universal colour paperless recorder with max 8 channels (6 standard), high accuracy processor for easy operation in universal applications. Display, measure, record and analyse or export processes parameters such as temperature, humidity, pressure, flow, vibration etc in various industry applications.

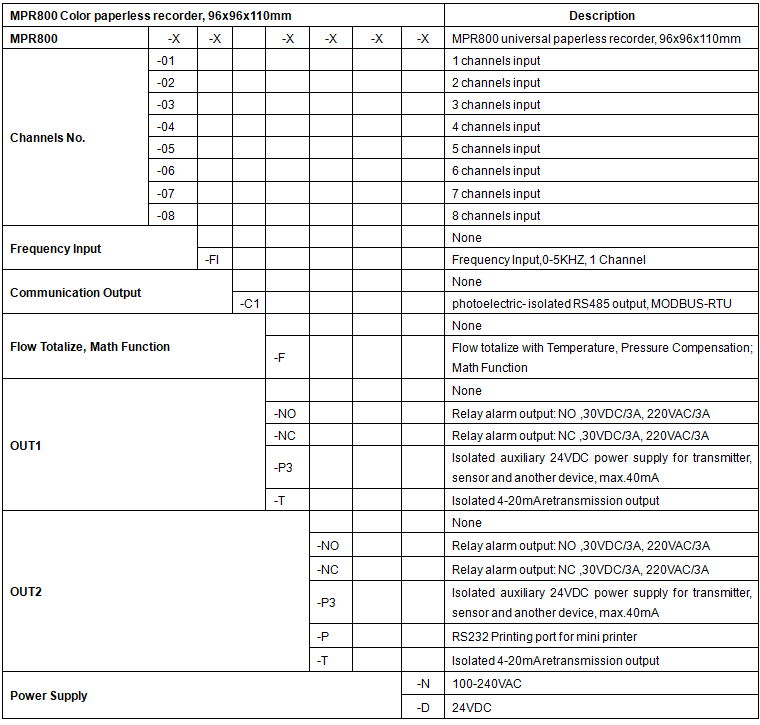

Stock Unit Model Number:

  • MPR800-06-F1-F-NO-NO-N (6 channel)

MPR800: Colour paperless recorder
Size:96x96x110mm,3.5” Color LCD
6 Input channel, universal programmable input
Frequency input, 0-5khz, 1 channel
2 Relay output :NO,3A
Flow totalizer, Math Function, temperature or pressure compensation USB interface + USB flash drive + Offline Data analysis software
Power supply:100-240VAC

Please send us an enquiry should you need a different configuration in the MPR800 series.

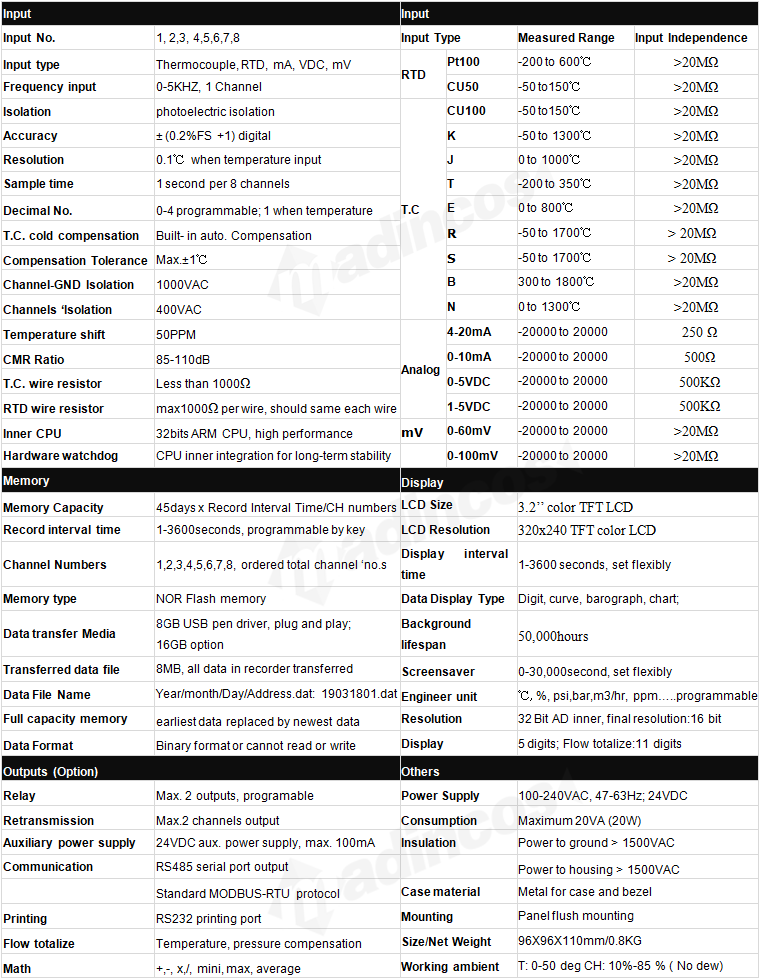

Features:

  • High accuracy: +-(0.2%FS +1) digit, 3.2’’TFT LCD display
  • Programmable universal input: T.C., RTD, mA, VDC
  • Input channels no.: 1~8
  • Built in thermocouple automatic cold junction compensation
  • Output: 4-20mA, relay, 24VDC auxiliary power supply
  • RS485 communication port, standard MODBUS-RTU protocol, configurable with HMI, SCADA, OPC serve etc.
  • Flow totalize with temperature, pressure compensation or linear compensated input
  • Math Function: +, -, x, /, average, max, mini
  • Various trend curves, bargraph, digital displays with live or history view selection
  • Offline PC software to display data in trend curve, print and export to excel for further analysis
  • Wide power supply: 100-240VAC
